Quick Facts
David Clark M-7/DC noise-canceling electret microphone for compatible wire-boom aviation headset and flight helmet communication systems.
- Manufacturer: David Clark
- Model: M-7/DC
- Manufacturer Part Number: 09168P-31
- Microphone Type: Electret
- Noise Canceling: Yes
- Boom Compatibility: Designed for compatible wire booms
- Electrical Requirement: Requires a compatible communication circuit that supplies DC bias voltage
David Clark M-7/DC Flight Helmet Microphone
The David Clark M-7/DC is a noise-canceling electret microphone designed for clear voice transmission in compatible aviation communication systems. It is intended for use with compatible wire-style microphone booms and can be used in properly configured aviation headsets and flight helmet communication systems.
For flight helmet applications, microphone selection should be based on the complete communication configuration rather than helmet appearance alone. The microphone, boom, contacts, internal wiring, communication cord, plug, intercom, and aircraft radio interface must all work together as a compatible system.
The M-7/DC can replace certain carbon and amplified dynamic microphone configurations when the communication circuit is electrically compatible. Compatibility should be confirmed before changing microphone technologies or modifying an existing flight helmet.
Is the M-7/DC Correct for Your Flight Helmet?
A flight helmet shell or model does not by itself determine which microphone should be installed. Different helmet configurations can use different booms, microphone technologies, wiring systems, cords, connectors, impedance arrangements, and aircraft interfaces.
Existing microphone: Confirm that the current microphone is an M-7/DC or an approved electrically compatible replacement.

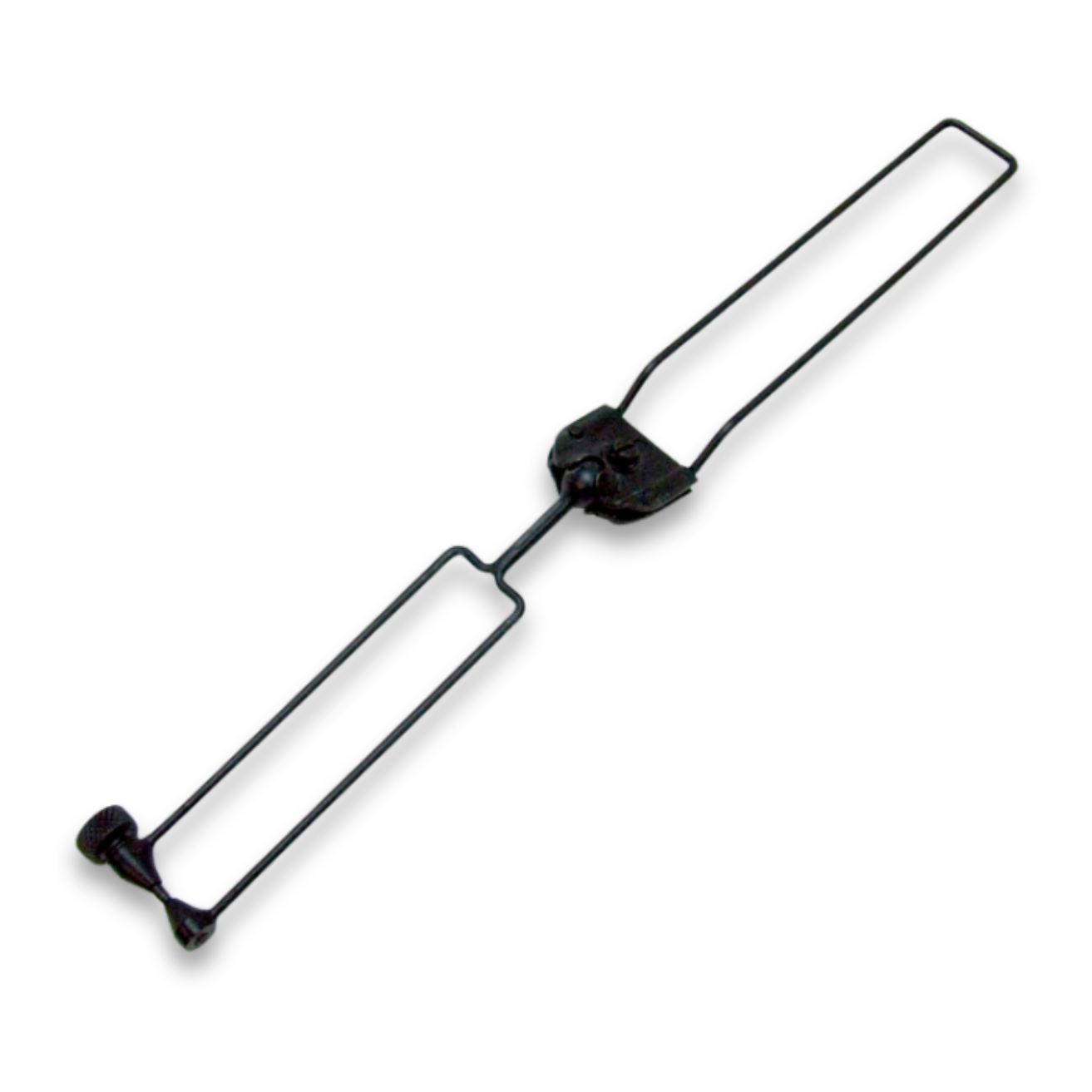

Boom configuration: The M-7/DC is designed for use with a compatible wire-style microphone boom.
Electrical system: The communication circuit must supply the DC bias voltage required by the electret microphone.
Complete system: Verify the microphone contacts, helmet wiring, communication cord, connector, aircraft intercom, and radio configuration.
Important: The M-7/DC requires a communication circuit that supplies DC bias voltage. It will not operate correctly in a circuit that does not provide the required voltage.
Understanding the M-7/DC Electret System
The M-7/DC is an electret microphone. Electret microphones require a compatible powered communication circuit, which is an important consideration when installing the microphone in a flight helmet or replacing a microphone from a different electrical system.
The M-7/DC should not be treated as a universal replacement for low-impedance military microphones such as the M-87 or M-2. Those microphones are associated with different communication configurations.
When converting a flight helmet from one communication standard to another, additional changes to wiring, microphone components, cords, connectors, or other parts of the communication system may be necessary.
What Should Be Checked Before Installation?
| Component | Compatibility Requirement |
|---|
| Microphone | Confirm an M-7/DC or an approved electrically compatible configuration. |
| Boom | Compatible wire-style microphone boom. |
| Electrical Circuit | Must supply the DC bias voltage required by the electret microphone. |

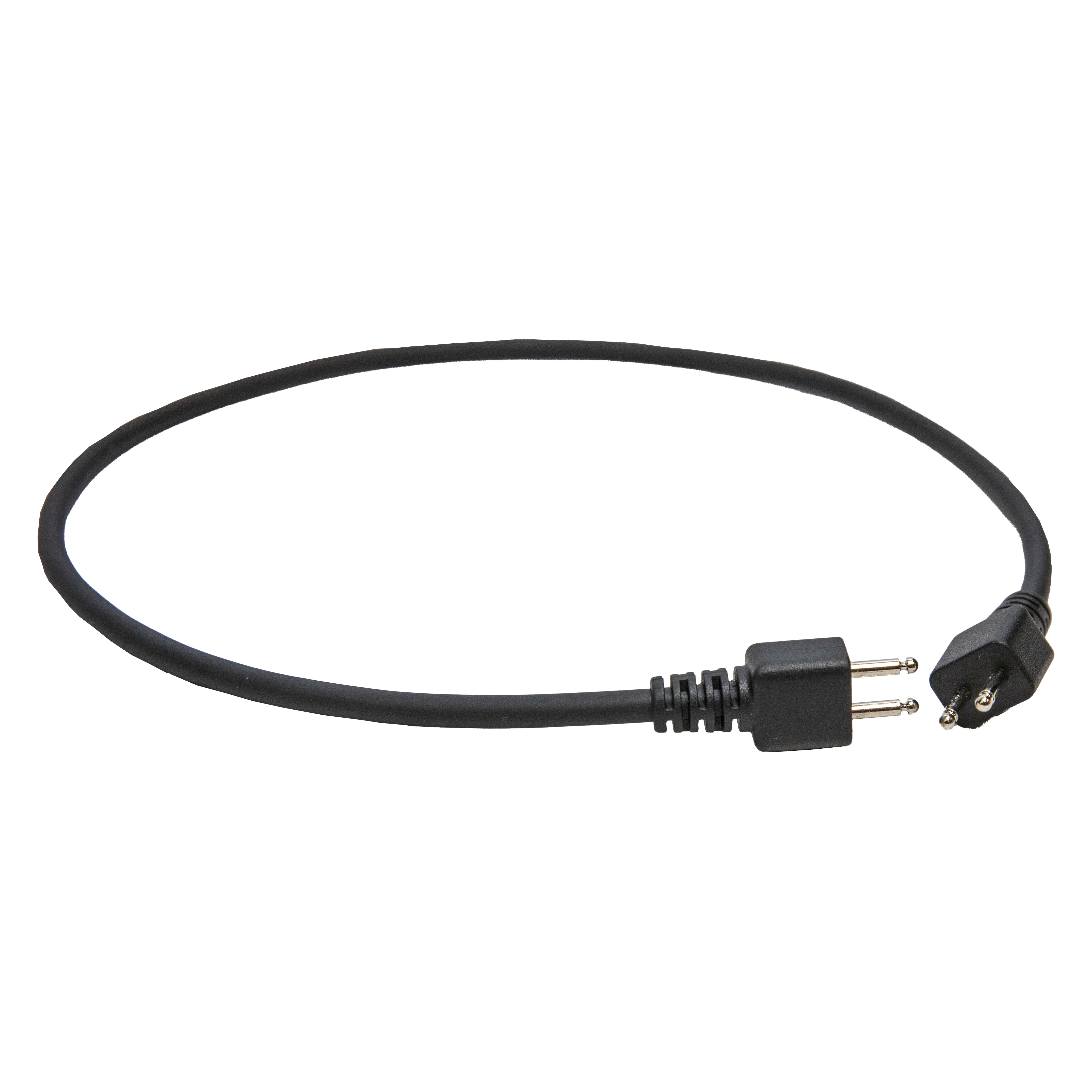

| Microphone Cord | Contacts and cord must match the boom and helmet or headset wiring. |
| Aircraft Interface | Confirm compatibility with the aircraft intercom and radio system. |
The helmet or headset brand alone does not guarantee compatibility. The exact communication configuration should be verified before ordering.
M-7/DC Flight Helmet Applications
The M-7/DC may be appropriate for professionally configured aviation helmet systems that use a compatible wire boom and electret microphone circuit.
- Flight helmets already configured with an M-7/DC
- Civilian aviation communication systems supplying the required DC microphone bias
- Professional helicopter helmet communication systems
- Flight helmet repair or refurbishment
- Compatible David Clark wire-boom aviation headsets
- Communication-system installations where the boom, cord, wiring, and aircraft interface have been verified
These applications do not mean the M-7/DC fits every flight helmet or aviation headset. Always verify the actual communication system.
M-7/DC vs. M-7A
The David Clark M-7/DC and M-7A are separate microphone models. Although both are associated with aviation communication systems, they should not be treated as universally interchangeable.
| Feature | M-7/DC | M-7A |
|---|
| Microphone Type | Electret, noise canceling | Amplified electret, noise canceling |
| Typical Boom Configuration | Compatible wire-boom configurations | Flex or flex-wire configurations |
| David Clark Part Number | 09168P-31 | 09168P-33 |
Compatibility Reminder: Use the microphone specified for the helmet or headset communication system. Do not substitute an M-7A, M-87, M-2, or another microphone solely because the component looks similar.
What Is Included?
- One David Clark M-7/DC electret microphone
- David Clark manufacturer part number 09168P-31

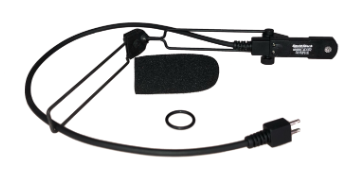

The microphone boom, microphone cord, wind cover, mounting hardware, earphones, helmet wiring, and main communication cord are not included unless separately selected.
Flight Helmet Installation and Microphone Positioning
Correct microphone installation and positioning are important for clear transmission and effective noise cancellation. Position the microphone close to the mouth and verify that the speaking side is oriented correctly.
Professional installation is recommended when the flight helmet requires wiring changes, connector replacement, boom modification, soldering, or conversion between different communication configurations.
Is the Microphone Really the Problem?
Poor or intermittent transmitted audio does not always mean the microphone element has failed. Several components in a flight helmet communication system can create similar symptoms.
- M-7/DC microphone element
- Microphone boom and contacts
- Internal helmet wiring
- Microphone or communication cord
- Connectors and aircraft adapters
- Aircraft intercom or radio configuration
If the source of the problem is uncertain, troubleshooting the complete communication system can help determine whether the microphone actually needs to be replaced.
Flight Helmet Communication Support from Evolution Helmets
A flight helmet microphone has to function as part of the complete helmet communication system. Evolution Helmets works with microphones, booms, earphones, wiring, communication cords, connectors, and aircraft interfaces as part of complete aviation helmet configurations.
- Flight helmet communication-system support
- Microphone and boom configuration assistance
- Flight helmet inspection and communication troubleshooting
- Helmet repair, refurbishment, and communication upgrades
- Help matching communication components to the intended aircraft connection
David Clark M-7/DC Flight Helmet FAQs
Can a David Clark M-7/DC be installed in a flight helmet?
Yes, when the flight helmet uses a compatible wire-style microphone boom, wiring, cord, and communication circuit that supplies the required DC bias voltage.
Can the M-7/DC be used in an EVO flight helmet?
It may be used when the specific EVO helmet communication configuration is designed for the M-7/DC and provides the required electrical and mechanical compatibility. The helmet model alone does not determine microphone compatibility.
How do I confirm that I need an M-7/DC?
Check the existing microphone and communication configuration. The M-7/DC is David Clark manufacturer part number 09168P-31. If the microphone cannot be identified, the boom, wiring, cord, connector, and aircraft interface may also need to be checked.
Does the M-7/DC need electrical power?
Yes. The M-7/DC is an electret microphone and requires a compatible communication circuit that supplies DC bias voltage.
Can an M-7/DC replace an M-87 or M-2 military microphone?
Not as a direct replacement. The M-7/DC is an electret microphone, while the M-87 and M-2 are associated with different low-impedance communication configurations. Converting between microphone systems can require additional communication-system changes.
What is the difference between the M-7/DC and M-7A?
David Clark identifies them as separate microphone models. The M-7/DC is part number 09168P-31, while the M-7A is part number 09168P-33. They should not be assumed to be interchangeable.
Does the M-7/DC include a microphone boom?
No. This listing includes the M-7/DC microphone only. The microphone boom, cord, wind cover, mounting hardware, earphones, and main communication cord are separate components unless otherwise selected.
Can Evolution Helmets help determine if my helmet needs an M-7/DC?
Yes. If you are unsure which microphone is installed, provide the helmet model and details or photographs showing the existing microphone, boom, communication cord, plug, and aircraft connection so the communication configuration can be evaluated.
